MIA Industrial Cabinet centrifugal Fan – Exhaust Fan for Factories and Warehouses (1500m3/h ~ 50000m

Ms. MIA September 9, 2026

MIA Industrial Cabinet centrifugal Fan – Exhaust Fan for Factories and Warehouses (1500m3/h ~ 50000m3/h 380V bigger wind pressure)

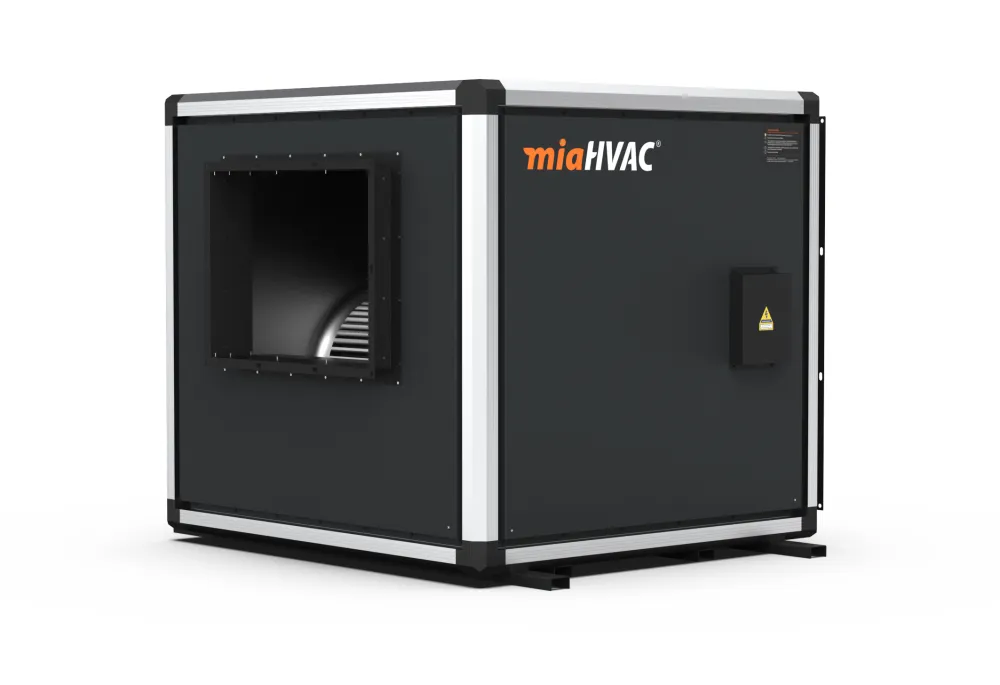

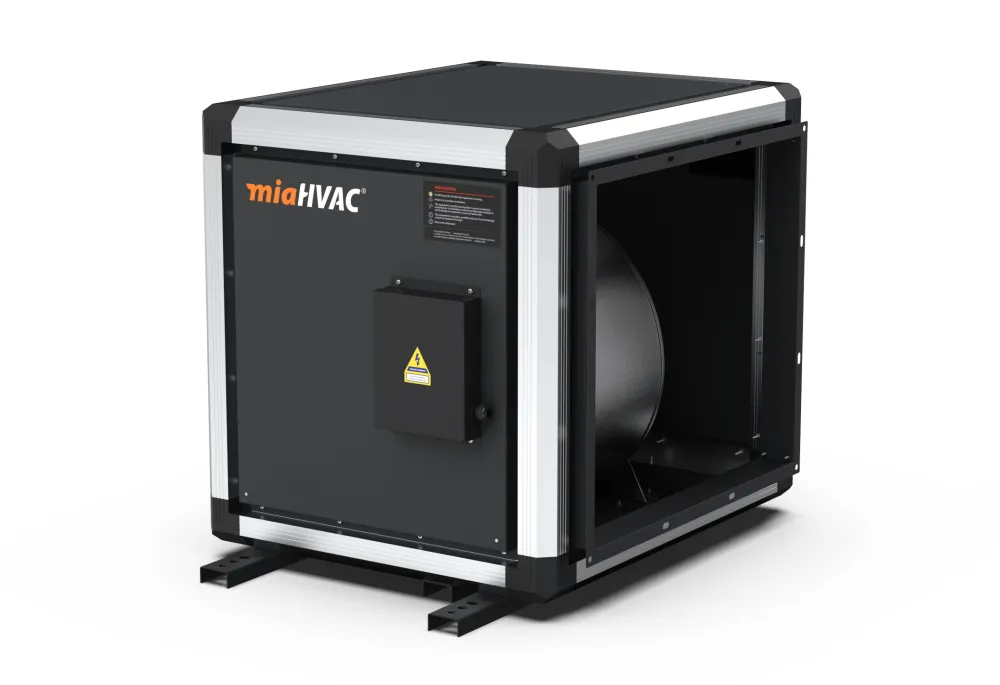

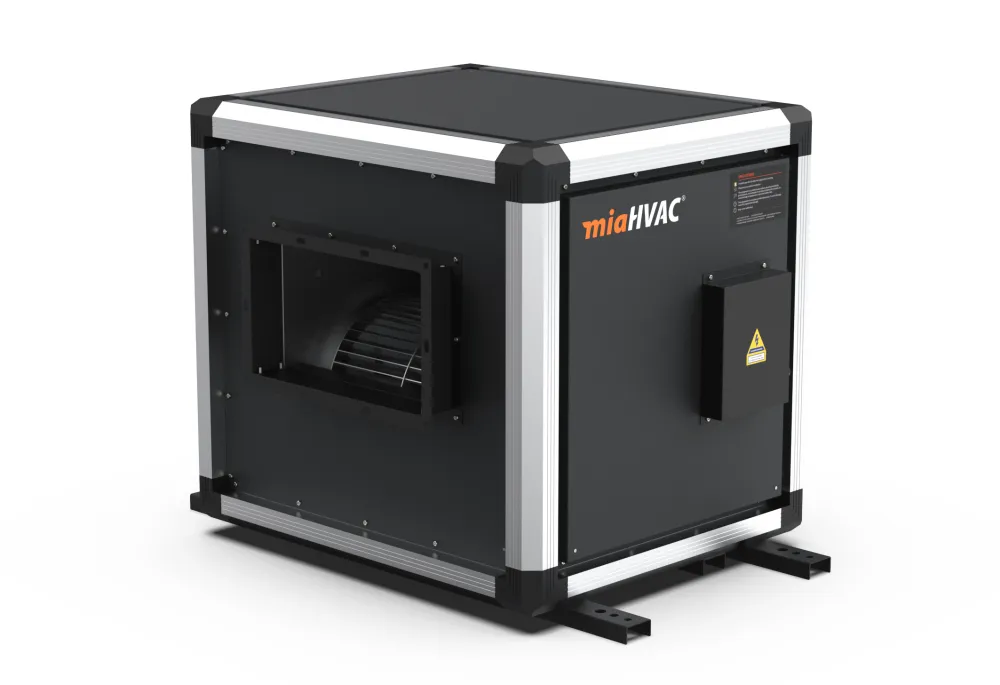

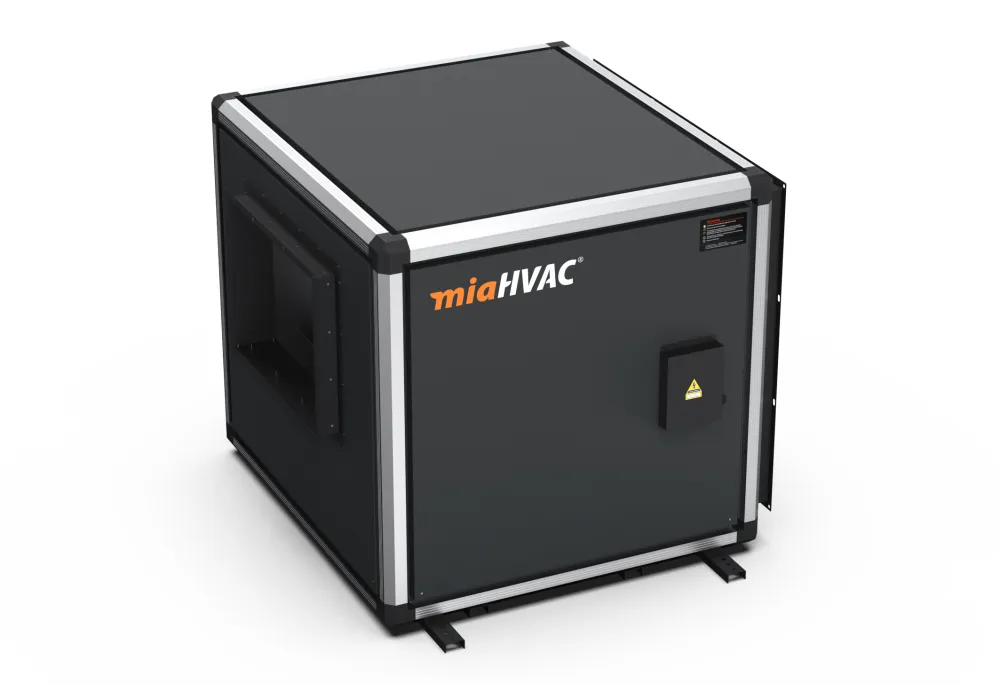

150FJX380V-2026.598.png150FJX380V-2026.599.png150FJX380V-2026.600.png1500FJX380V-2026.601.png1500FJX380V-2026.602.png


Function:  Primarily designed for centralized, high-capacity indoor air exhaust, the system can also be configured for forced air supply. It supports optional filtration stages—such as primary and HEPA filters—to purify air before supplying it indoors or exhausting it outdoors, and allows for custom-engineered filtration systems tailored to the specific requirements of specialized environments. The unit utilizes a high-speed, high-static-pressure 380V fan, with options for a variable frequency drive (VFD) for stepless speed control and a smart Wi-Fi controller featuring PM2.5 and CO2 air quality monitoring alongside a Modbus RS485 communication interface. Its robust, high-pressure fan adapts to diverse installation settings and meets sophisticated commercial needs, including air quality monitoring, remote control, and centralized building management integration.

Features:The 380V high wind pressure fan is suitable for commercial long-distance and multi-branch pipeline air supply or exhaust.

Configuration:

The devide itself does not have any filters inside,but it you want to add any filters,we can do it for you with NO MOQ requirements.

Filter choices: G4,HEPAH13,HEPAH11,F7,F8 etc


High pressure 380V fan can offers optional frequency converters and intelligent WIFI controller monitoring PM2.5, CO2. It enables stepless speed regulation and separate stepless speed regulation for air supply/exhaust, with optional RS485 support for centralized control in commercial buildings.

The common types of control schemes are as follows:

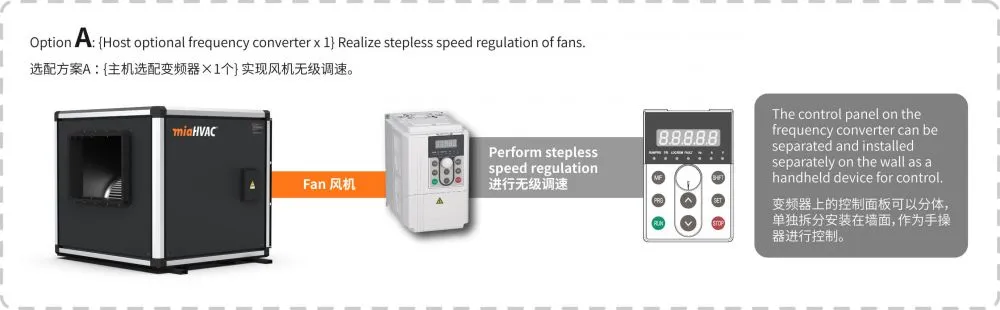

Option A:{Host optional frequency converter x 1} Realize stepless speed regulation of fans.

The control panel on the frequency converter can be separated and installed separately on the wall as a handheld device for  control.

详情页-风机箱-3

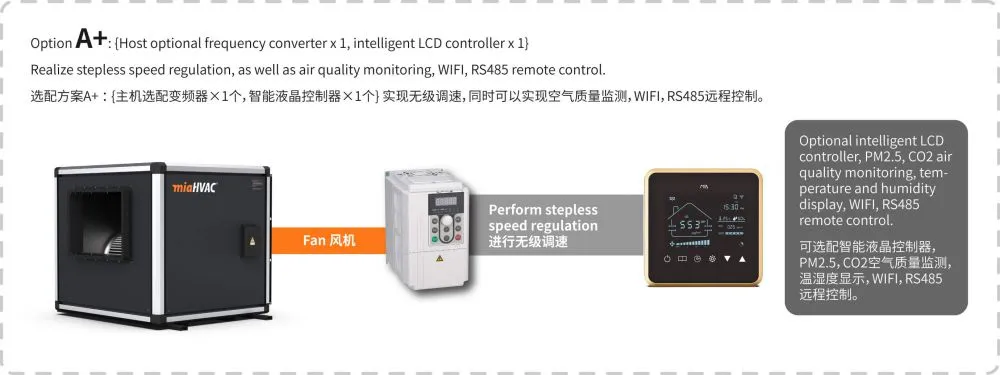

Option A+: {Host optional frequency converter x 1, intelligent LCD controller x 1}

Realize stepless speed regulation, as well as air quality monitoring, WIFI, RS485 remote control.Optional intelligent LCD controller, PM2.5, CO2 air quality monitoring, temperature and humidity display, WIFI, RS485 remote

control.

详情页-风机箱-4
